AirLift 6 – Pond Aerator
Hydro Logic Products® AirLift 6™ pond aeration systems are designed and built to cost effectively mix and aerate ponds and lakes. Our systems use billions of micron sized bubbles to improve pond and lake water quality. Our AirLift 6™ aeration system can aerate ponds and lakes up to 12-acres in size depending on air diffuser placement, nutrient concentrations, biological oxygen demand (BOD), water depth and other physical characteristics of the waterbody.
Benefits of AirLift Pond Aeration
- Increase Dissolved Oxygen Concentrations
- Eliminate Stress to Fish & Aquatic Organisms
- Increase Water Clarity (Transparency)
- Reduce Harmful Algal Blooms (HAB – Algae)
- Reduce High Metal Concentrations
- Reduce Nutrient Releases by Anoxic Sediments
- Reduce Buildup of Poisonous Gases
- Reduce Release of Noxious Odors
- Reduce the Accumulation of Sediments
- May Reduce Nuisance Levels of Aquatic Plants
- No Electricity in the Water
- Warranties on all System Components
Our AirLift 6™ aeration system is powered by two 1/3 H.P. energy efficient, dual piston air compressors equipped with our proprietary SureStart™ and AirSaver Timer™ (optional) technologies. SureStart™ enables our compressors to start against full back pressure and prevents the motor from overheating. Our dual piston air compressor, which can deliver air under high pressures (water depths up to 60 feet), operate very quietly (55 decibels at 2 meters/6 feet).
Our AirLift 6™ aeration system contains four AirPod™ air diffusers. Each AirPod™ contains a self-cleaning 24-inch tube, EPDM flexible membrane air diffuser equipped with a triple check valve system. Our air diffuser is constructed to withstand total airflow from the compressor without damaging the EPDM membrane (unlike EPDM disc air diffusers). The base of the AirPod™ provides a large surface area between the EPDM membrane and the sediments, thereby preventing sediment disturbance during system operation. The AirPod™ is extremely easy to install. Simply fill the two ballast tubes with pea gravel or sand prior to their placement in the pond or lake.
Compressed air from our dual piston compressor is delivered to the AirPods™ using our DownUnder™ self-weighted tubing. DownUnder™ air supply tubing is constructed of a flexible PVC composite and is kink proof and puncture resistant. Our easy to install tubing comes in several different lengths and diameters to meet your installation needs.
- Two 1/3 HP dual piston air compressor with integral thermal motor overload protection
- Produce high airflow volumes (9.2 cfm @ 0 psi) & operate under high pressures (40 psi max.)
- Oil-less air compressor that will not contaminate the pond and is virtually maintenance free
- Liquid-filled pressure gauge
- Adjustable pressure relief valve
- Ground Fault Circuit Interupter (GFCI)
- 6’ grounded plug
- SureStart™ technology allows air compressor to restart under pressure after power outages
- High air pressure allows diffusers to be easily cleaned (unlike rotary vane compressors)
- U.L. listed motor, 120 or 240 volt (8.4 or 4.2 amps) for typical operating pressure of 8 psi
- 5-micron air filter maximizes air compressor life expectancy
- Easy field repairs – plumbing connections with push-on fittings & flexible 100 psi tubing
- Noise reduction – mounted on cylindrical vibration pads & connected with flexible tubing
- Extremely quiet operation (55 decibels @ 2 meters or 6 feet @ 20 psi)
- Two-year warranty (best in the industry)
Our dual piston air compressors (240 volt option available) are outfitted with our proprietary SureStart™ technology. This allows automatic restart of the air compressors under full pressure during any power outage (blackouts or brownouts) without damaging the air compressor motor. The air compressors are oil-less, thermally protected and require no lubrication. The air compressors include rotors/stators manufactured with the most advanced magnetic materials, sealed heavy-duty precision bearings and starting capacitor. The only required routine maintenance is periodically changing the 5-micron air filters. The compressor can typically operate approximately 3 years or more before any decline in performance is observed. This is 2 to 3 times better performance over standard diaphragm and rotary vane compressors. Thereafter, the air compressor can be easily serviced by replacing the piston seals. Airflow versus pressure performance curves for our dual piston compressor vary less than for diaphragm and rotary vane compressors. This simply means that means that dual piston compressor provides more air while using less energy. Lastly, our dual piston air compressor can operate under high pressures, thereby allowing the air diffuser membranes to be easily cleaned without pulling the AirPod from the pond.
- Commercial grade, 14-gauge steel cabinet that is rustproof & vandal resistant
- Powder coated, forest green finish to blend into its surroundings
- Easy access design with lock & key for added security
- 6½ foot 3 prong plug for easy connection to standard 2-pole 3 wire 15A/20A electrical outlet
- Electrical circuits are Class “A” GFCI protected with a trip 4-6mA trip rating
- Single ball bearing fan-cooled to maximize life of air compressors
- SuperCool™ dual cooling fans available for very hot conditions or climates (optional)
- Manifold equipped with sealed valves to precisely control the airflow to AirPod diffusers
- Heavy duty (24”L x 24”W x 2”H) HDPE mounting pad included
- Overall dimensions (24”L x 24”W x 24.6”H)
- Five-year warranty (best in industry)
The commercial-grade cabinet is constructed of 14-gauge steel with forest green electro-statically bonded powder coating. The cabinet is manufactured with a stamped ventilation intake grill and low resistance exhaust plenum. The cabinet comes equipped with sealed ball bearing cooling fan to maximize air compressor life and Class “A” GFCI Protection on all circuits. All cabinet components are easily disassembled using standard household tools. The cabinet includes a 5-year warranty against rust and corrosion and a 2-year warranty on all components mounted inside of the cabinet.
- Six AirPods equipped with single flexible, fine pore EPDM rubber membrane tube diffuser
- More durable than air stone, porous media & EPDM disc diffusers
- Produces extremely fine air bubbles (500 – 1,000 micron or 0.020 – 0.040 inch)
- Triple check valve prevents water & sediment from entering the air supply lines
- One EPDM tube diffuser is 20% larger than two 9-inch EPDM disc diffusers
- Self-cleaning & very low maintenance
- Large HDPE base (24”L x 18”W) to prevent sediment disturbance
- All AirPod components are corrosion resistant using PVC, fiberglass & HDPE materials
- Five-year warranty (best in the industry)
Each AirPod™ air diffuser contains a self-cleaning 24-inch, EPDM flexible membrane tube diffuser equipped with a triple check valve system. The triple check valve prevents water and sediment from flowing back into the air supply lines during system shut down. The EPDM tube air diffuser is mounted to heavy-duty strut with ratcheting tie-downs to provide easy assembly/disassembly. The above components are secured to a large HDPE base. Two hollow ballast tubes are anchored beneath the base. The ballasts tubes are designed so that pea gravel or sand can be easily added to these tubes during installation.
- Over-sized 0.58 inch i.d.for low-pressure drop applications*
- Heavy-duty wall thickness for durability
- Self-weighted for easy installation
- Kink proof & puncture resistant

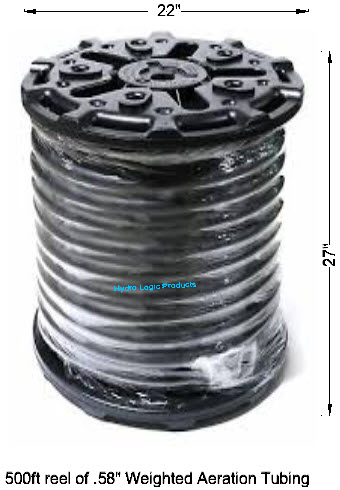

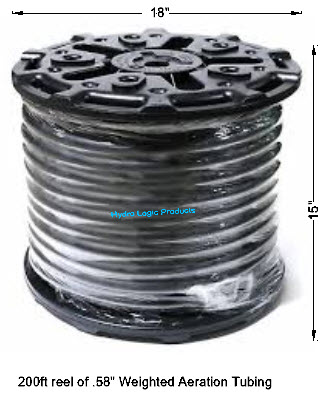

- Available in 100 ft. (boxed) and 200ft and 500ft (reels) lengths
- Also available in custom sizes (3/8″, .58″, 3/4″, 1″, 1.25″ and 1.5″) diameter in custom lengths.
- 10-year warranty (best in the industry)

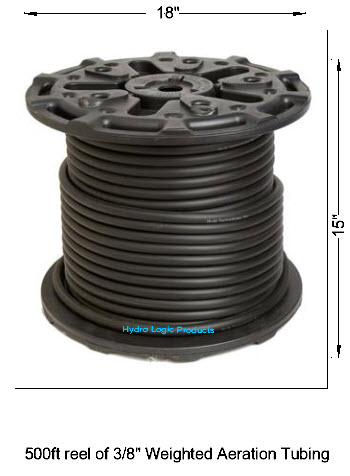

* DownUnder™ air supply tubing is also available in 3/8 inch i.d. (.375 in) for smaller pond and lake applications
DownUnder™ air supply tubing is constructed of a flexible PVC composite and is self-weighted in order to firmly remain along the pond or lake bottom after the installation. Sections of DownUnder™ tubing are connected together using standard PVC solvent weld cement and ½ inch insert fittings. DownUnder™ air supply tubing has low friction walls (0.58 inch i.d.) for maximizing airflow rates and minimizing air pressure drops. Our DownUnder™ tubing is designed to reduce the overall system pressure requirements and to extend the life of the air compressors. The wall thickness provides long-term durability and protection against kinking and punctures. The air supply tubing remains flexible in cold temperatures allowing for easy year-round installations.
Pond Aerator Specifications
